Pallet & Cartons Flow Storage Systyem

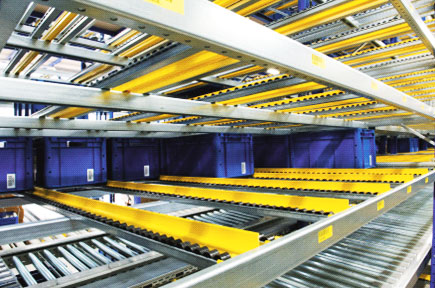

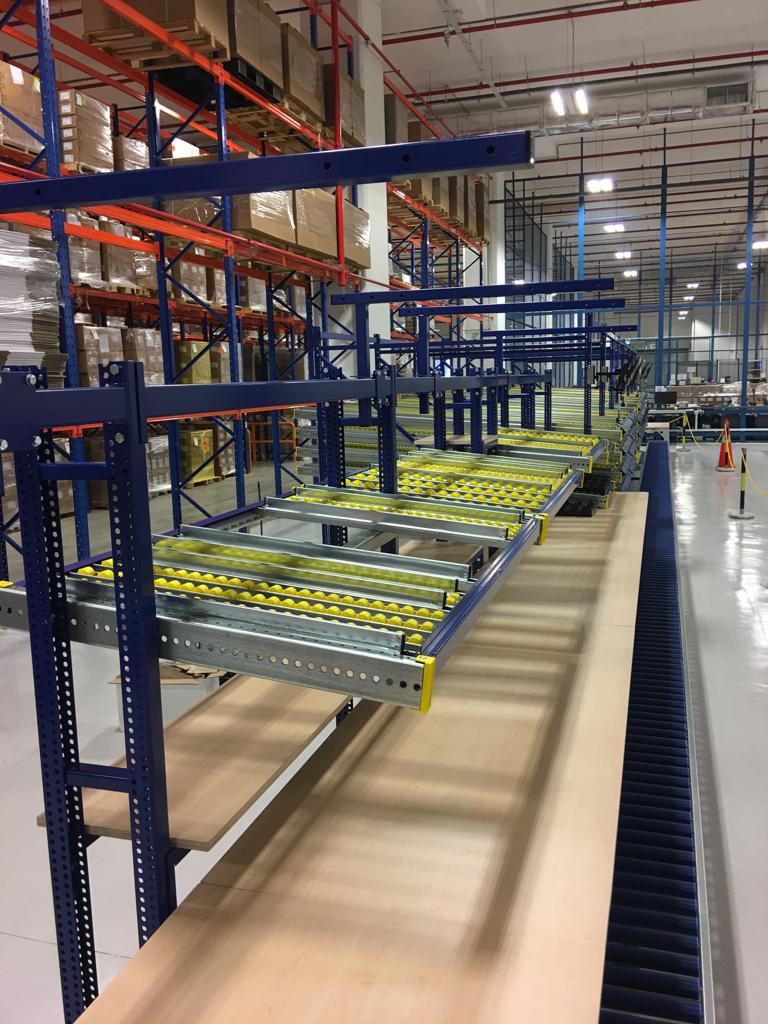

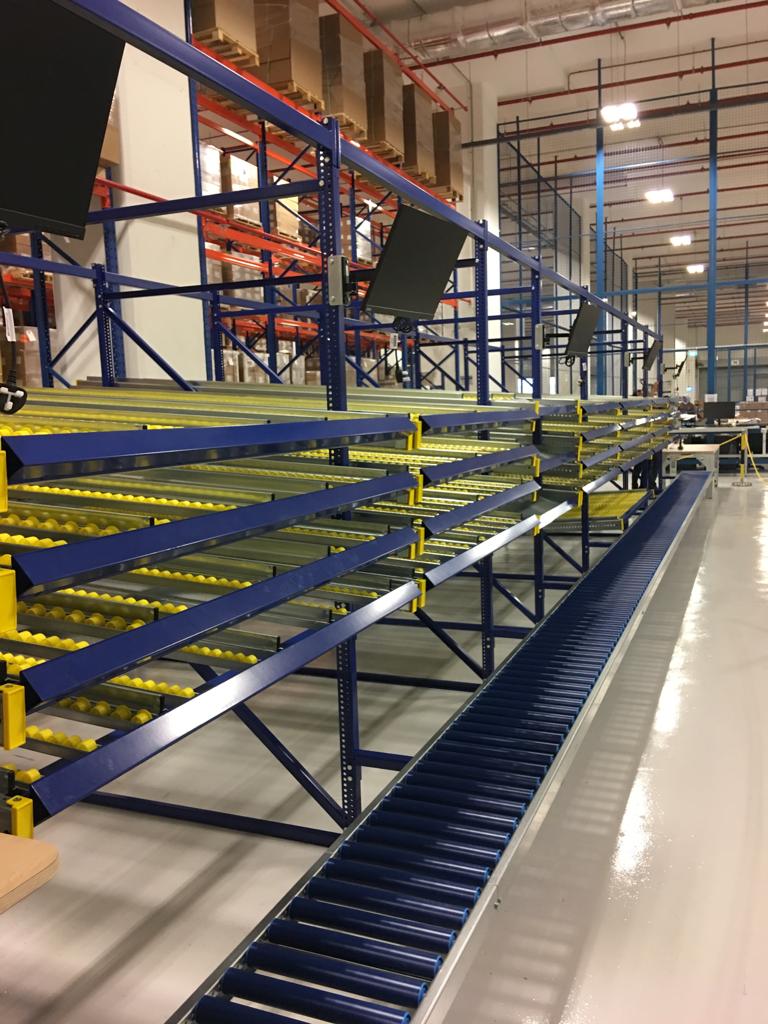

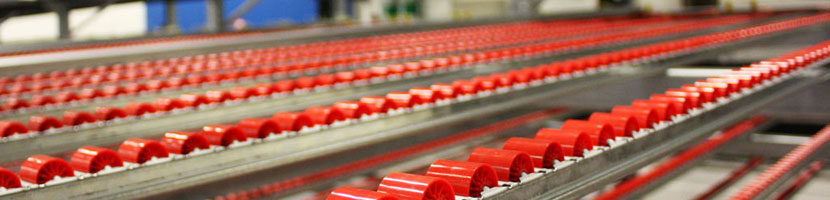

Carton Flow Storage
Carton Wheel Flow is the best way to increase your picking rate up to 150 picks per hour in a safe way. The rate can be increased up to 450 picks per hour when the Carton Wheel flow is combined with a pick-to-light system.

With closed profile of the tracks it do not open even under heavy loads, different types of guides, back-stop for automatic loading method, breaking and loading plates and more. You can choose between 4 different wheel colors: black, yellow, red and blue.

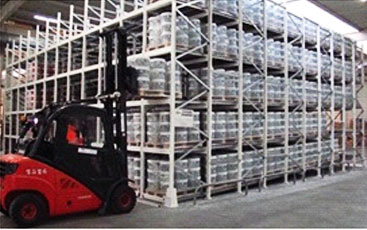

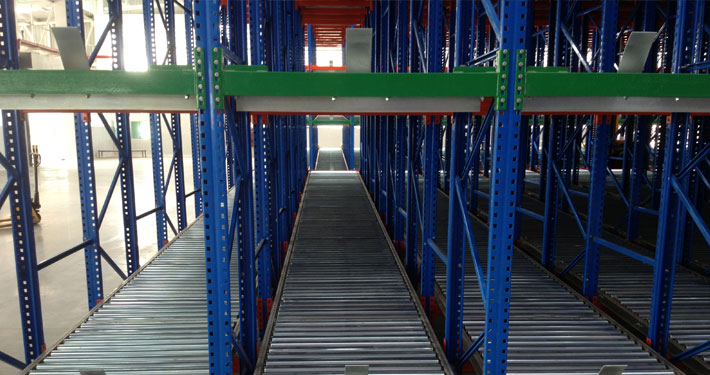

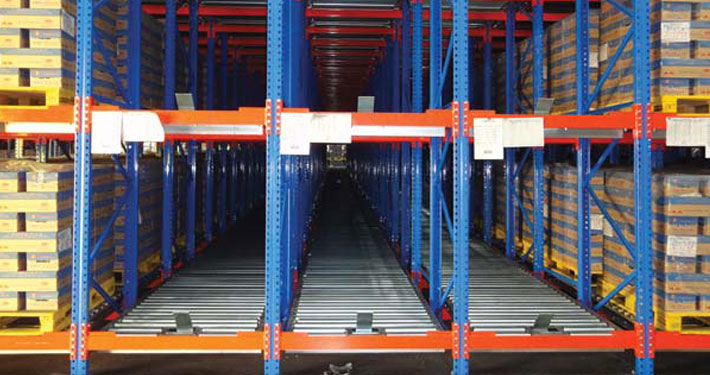

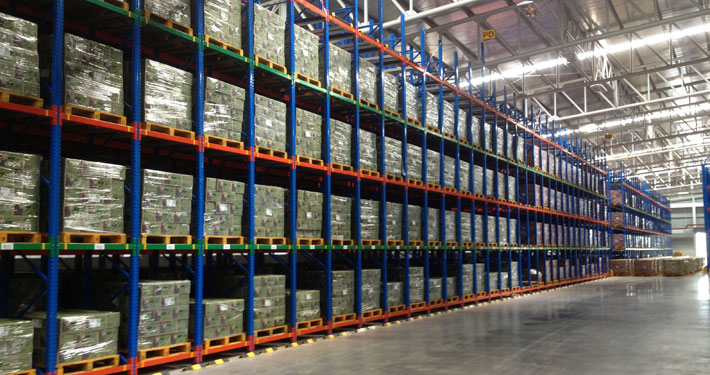

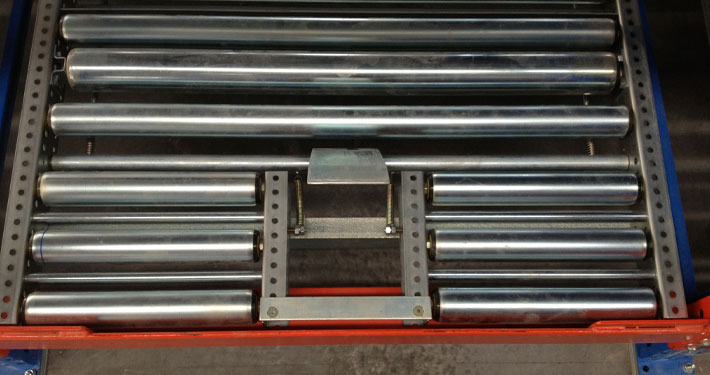

FIFO - Pallet Dynamic Storage

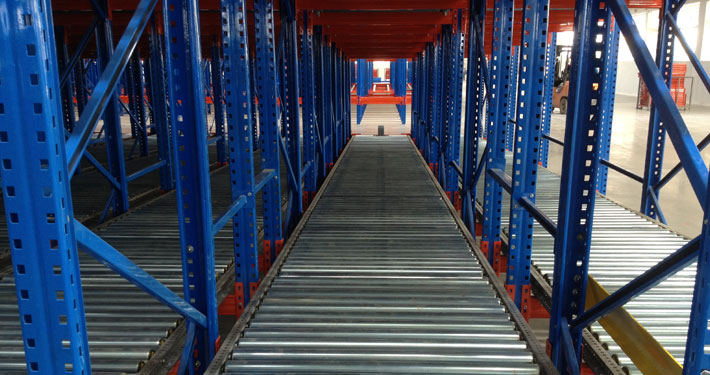

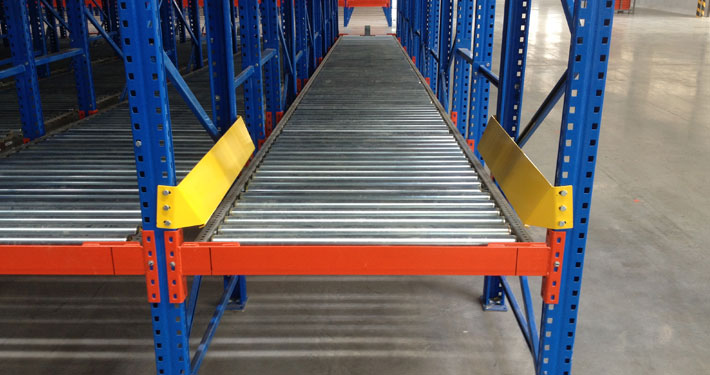

In FIFO configuration (First-In First-Out), the pallets are loaded in the gravity lanes on the entry side (the highest point). The slope then carries the pallets from the loading point to the retrieval point. When a pallet is unloaded, the next pallet automatically takes its place thereby ensuring that the goods are constantly available.

FIFO stock management guarantees stock rotation, as the first pallet to be loaded in a lane is the first pallet available at the picking face on the retrieval side. This management method is particularly efficient for perishable goods.

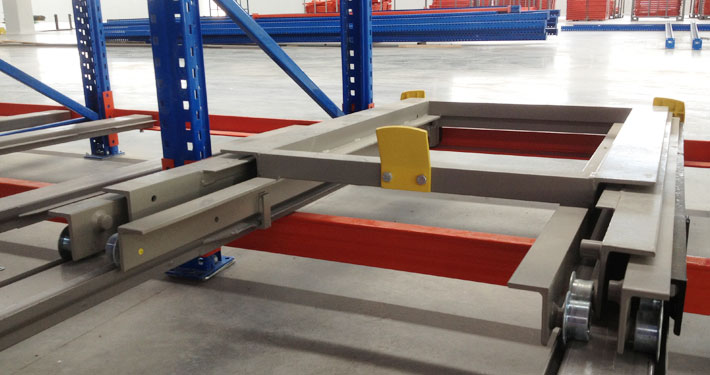

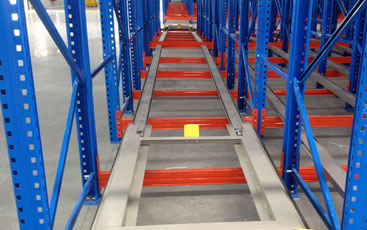

LIFO - Pallet Dynamic Storage
In LIFO configuration (Last In First Out), a forklift truck loads and unloads the pallets at the picking face. This is a pushback system. To load a pallet, the forklift truck pushes the pallet at the picking face towards the back of the lane using the pallet to be loaded.

When a pallet is unloaded, the pallet stored behind automatically takes its place, thereby ensuring that the goods are constantly available at the picking
